Welcome to the Show Cue System
The Show Cue System (SCS), formerly known as Sound Cue System, is the perfect solution for sound effect and music track playback for live theatre, and for backing track playback and automation for live music productions.

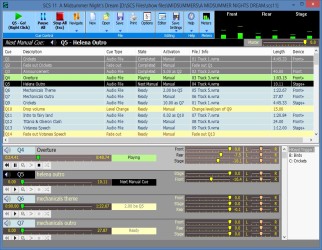

Main Window
The upper part of the screen contains a control area and VU meters. Below that is a scrollable list of the cues, and below this cue list is a more detailed look at the cues, starting with cues currently playing. The 'next cue' can be started simply by pressing the space bar or right-clicking the mouse.

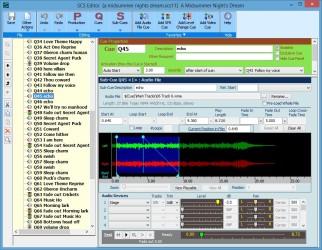

Editor Window - Audio File Cues
On the left of this screen is the cue list. The green background area to the right contains general details of the cue, and the blue background area below that contains details of the audio file sub-cue. After browsing for and selecting an audio file, you can set levels, start and stop positions, loop start and end points, fade times, etc.

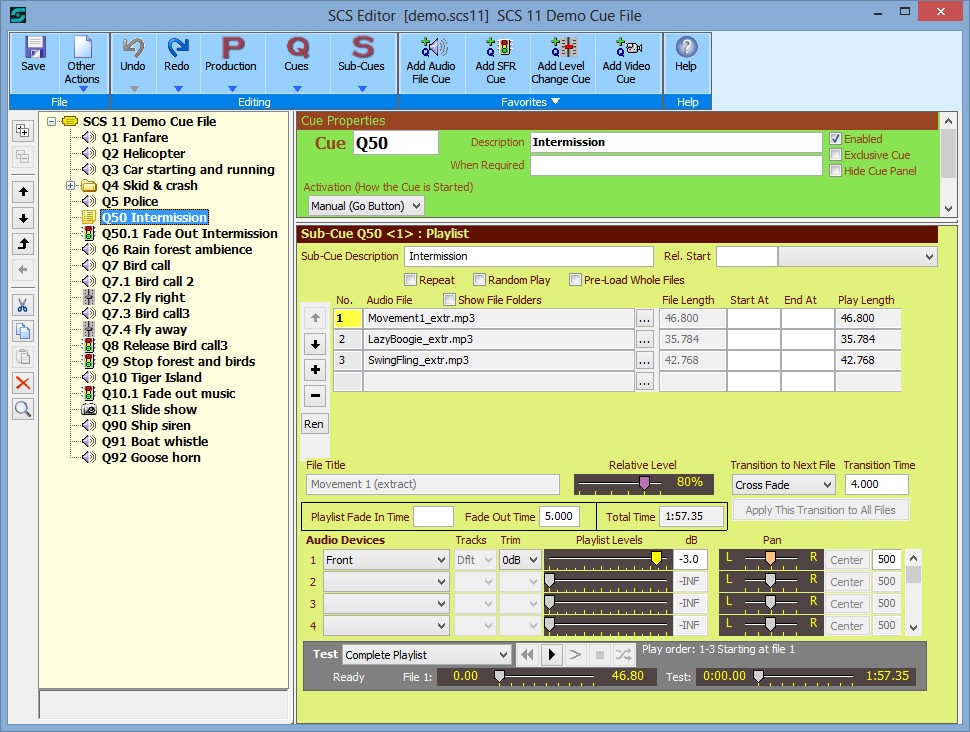

Editor Window - Playlist Cues
Playlist Cues are ideal for pre-show and intermission music, where you compile a list of tracks to be played either in order or randomly. Cross-fading and other transitions are available between tracks, and the whole playlist may be stopped or faded out when you are ready to start the show or the next Act.

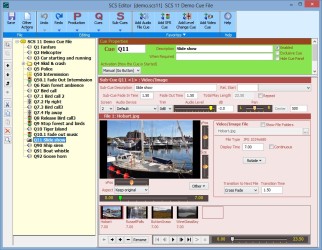

Editor Window - Video/Image Cues
Common video and still image file formats are supported. Videos and images may be faded in and out. If you have a second monitor or video projector then video/image cues will be displayed on that device during production running.

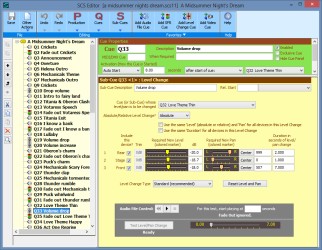

Editor Window - Level Change Cues
A Level Change cue enables you to adjust the level and pan of another cue over a nominated period, eg fade from 0dB to -9dB over 3 seconds. With multiple Level Change Cues you can make a sound move around the auditorium.

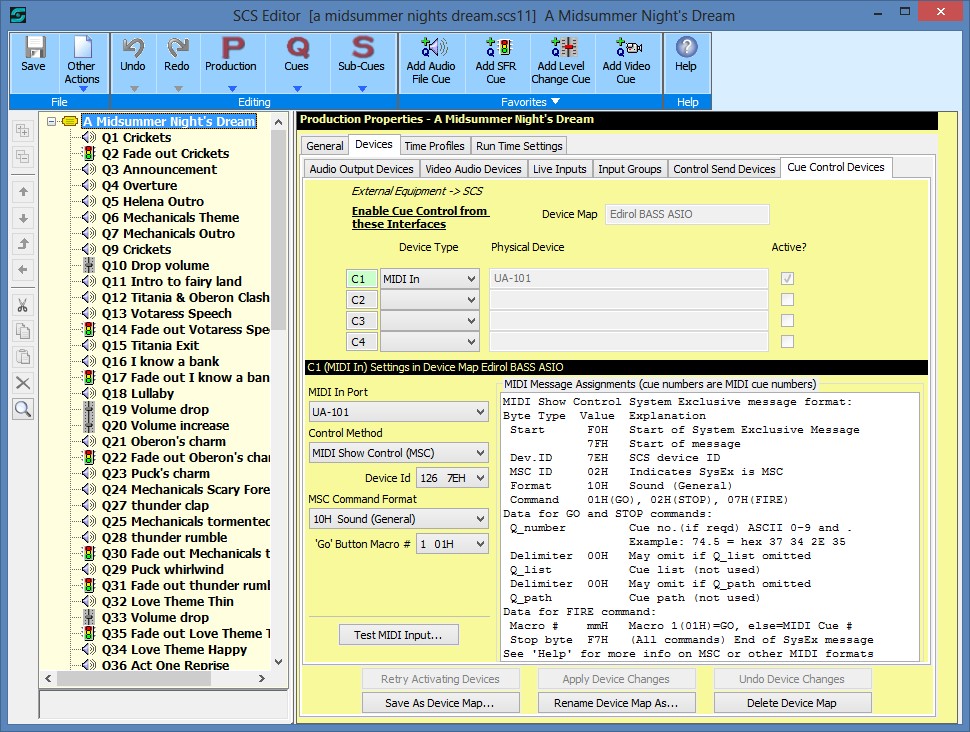

Editor Window - Production Properties - MIDI Cue Control
If you want to control SCS cues by MIDI, this Production Properties tab enables you to specify the required MIDI message types for activating cues, etc.
Click on an image to see the screenshot full size. Some features may require SCS Standard or higher license levels.
With SCS you can assemble all the cues you need in the order in which they are to be played. You can set the required level (volume), pan, length and speaker selection for each cue. Hot Keys are available for those sounds you may want to play at any time. Level Change cues can dynamically adjust cue levels; Control Send cues can send MIDI control messages to other equipment; Playlist cues can look after your pre-show and intermission music; and Video cues can play video files via a video projector or separate monitor. Up to 4 external projectors/monitors are supported.
 |
 |
 |
